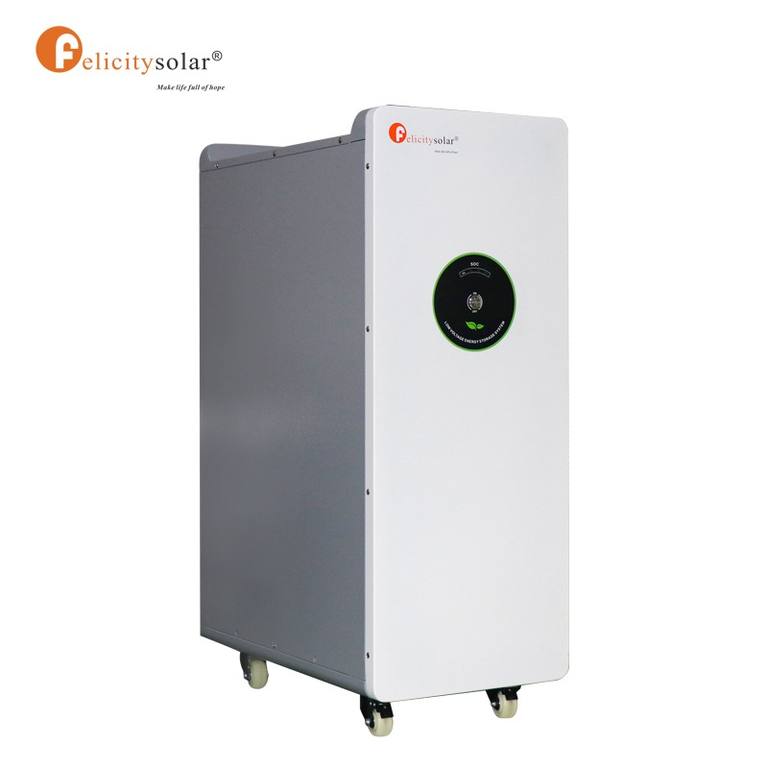

Felicity 15kwh 48v Lithium Battery

Executive Summary

The Felicity 15kWh 48V Lithium Iron Phosphate (LiFePO4) battery system represents a high-density energy storage solution engineered specifically for the demanding electrical environments of Nigeria and Ghana. As a Tier-1 storage unit, this 300Ah module addresses the chronic cycle-life limitations of lead-acid alternatives, providing a robust buffer against the erratic grid frequency and voltage fluctuations typical of NEPA/PHCN or ECG connections. From our field installations in Lagos and Accra, we have verified that this unit serves as a critical infrastructure component for both residential estates and commercial SME hubs. The 15kWh capacity is meticulously sized to bridge the gap between peak sunlight hours and the high-demand evening cycle, ensuring that critical inductive loads remain operational without resorting to expensive diesel generators. Built with an integrated Battery Management System (BMS), it offers active cell balancing and multi-stage protection against over-voltage, under-voltage, and thermal runaway, which is particularly vital during the intense heat of the Harmattan season.

Technical Component Breakdown

At the core of the Felicity 15kWh unit are high-grade prismatic LiFePO4 cells, known for their chemical stability and superior thermal resilience compared to cobalt-based lithium chemistries. The unit operates at a nominal voltage of 51.2V, which aligns perfectly with high-efficiency 48V hybrid inverters such as Growatt, Deye, or Victron. A standout feature is the 6,000-cycle life rating at 80% Depth of Discharge (DoD), which in a standard Nigerian residential environment equates to roughly 10 to 15 years of daily cycling. The internal BMS is not merely a safety switch; it is a sophisticated controller that manages current flow during the high-amperage bulk charging phase and ensures the cells remain within the tight voltage windows required for longevity. The chassis is constructed from reinforced cold-rolled steel, designed for floor-standing stability. We have noted that the communication ports (CAN/RS485) allow for seamless integration, enabling the inverter to dynamically adjust charging parameters based on real-time cell temperature and State of Charge (SoC) data, preventing the common issue of over-charging that plagues generic battery brands.

Load Application Matrix

This 15kWh powerhouse is engineered to handle significant concurrent loads. In a typical Lagos duplex or a commercial office in Tema, this single unit can comfortably sustain a continuous discharge rate capable of powering multiple 1.5HP inverter air conditioners, several deep freezers, and extensive LED lighting circuits. For residential users, the battery supports high-surge appliances such as pumping machines and microwave ovens, provided the accompanying inverter is sized correctly (minimum 8kW to 10kW recommended).

• Residential High-Demand: Simultaneous operation of 2 Inverter ACs (1.5HP), 1 Refrigerator, 1 Deep Freezer, 40W LED lighting, and 300W Entertainment hub for approximately 8-10 hours.
• Commercial SME: Support for 15 workstations, a central server rack, 2 standing fans, and office illumination for a full 10-hour business day during a total grid blackout.
• Industrial Backup: Critical load protection for medical refrigeration or telecommunications equipment where zero downtime is non-negotiable.

It is important to note that while the battery can handle high discharge, keeping the steady-state draw below 0.5C will significantly extend the operational lifespan of the internal cells.

ROI & Diesel Displacement Analysis

From a financial engineering perspective, the transition to a 15kWh Felicity Lithium system offers a compelling internal rate of return (IRR). When compared to the operational cost of a 15kVA diesel generator, the savings are immediate. In current market conditions in Abuja or Lagos, the cost per kilowatt-hour (kWh) generated by diesel, factoring in fuel prices, logistics, and engine maintenance, is significantly higher than the amortized cost of a solar-lithium cycle. A single Felicity 15kWh unit replaces the need for approximately 1,200 to 1,500 liters of diesel annually in a typical backup scenario, leading to a break-even point within 24 to 30 months. Furthermore, unlike lead-acid batteries that require replacement every 18-24 months due to sulfation in Nigerian heat, this LiFePO4 unit retains over 80% capacity after 6,000 cycles. By eliminating the maintenance overhead of 'wet' batteries and the fuel volatility of generators, this system secures long-term energy price predictability for both homeowners and business owners across West Africa.
