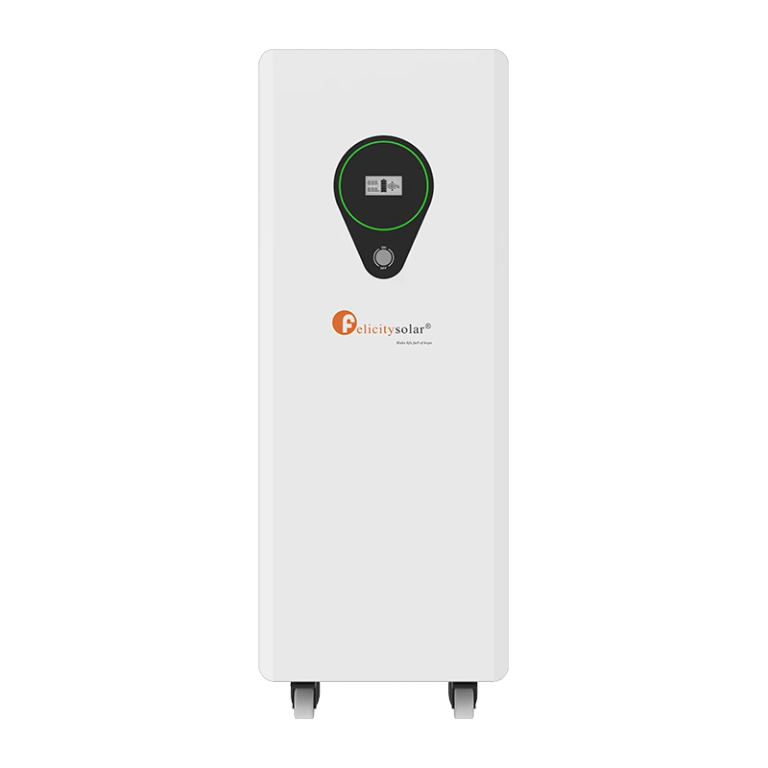

Felicity 17.5kwh 51.2V Lithium Battery

Executive Summary

The Felicity 17.5kWh 51.2V Lithium Iron Phosphate (LiFePO4) battery system represents a high-density energy storage solution engineered specifically for the demanding electrical environments of Nigeria and Ghana. At Maypatronic, we recognize that local grid instability—characterized by frequent brownouts and sudden surges—requires a battery chemistry that can withstand high-frequency cycling without thermal runaway. This 342Ah unit provides a significant step up from standard 10kWh blocks, offering the depth of discharge (DoD) and sustained current delivery necessary for large residential estates in Lagos and commercial hubs in Accra. Unlike traditional Lead-Acid or Gel alternatives, this LiFePO4 chemistry ensures a 6,000-cycle life at 80% DoD, effectively providing a 10-to-15-year service life when managed by a properly configured Tier-1 inverter system.

Technical Component Breakdown

Internally, this unit is built around a robust 16S configuration of prismatic cells, providing a nominal voltage of 51.2V. This is the global standard for 48V-class power electronics, ensuring seamless communication with brands like Victron, Growatt, and Deye via CAN or RS485 protocols. The integrated Battery Management System (BMS) is the critical safeguard; it actively monitors cell-level voltage, current, and temperature. During the intense Harmattan season, where ambient temperatures can fluctuate, the BMS prevents charging if the core temperature exceeds safe limits, preserving the internal electrolyte integrity. The unit features high-grade copper busbars to minimize internal resistance, reducing heat generation during high-amperage discharge cycles common in B2B applications. The physical chassis is IP21 rated, designed for floor-standing or wall-mounted installation, ensuring modular scalability where up to 12 units can be connected in parallel to achieve over 200kWh of total storage.

Load Application Matrix

For the B2C segment, a single 17.5kWh unit is the 'gold standard' for a 4-bedroom duplex in Abuja or East Legon. It comfortably supports high-surge inductive loads including two 1.5HP inverter air conditioners, a pumping machine, and multiple refrigeration units overnight without depleting the bank below 30%. For the B2B segment, this unit serves as the primary buffer for pharmacy cold-chain storage, server rooms, and retail POS systems. In a commercial setting, the 342Ah capacity allows a business to bridge the 4-hour gap often experienced during peak afternoon outages without triggering a noisy, expensive diesel generator. When paired with a 10kW or 12kW inverter, the discharge rate is sufficient to handle heavy-duty office equipment, including laser printers and plotters, which typically cause voltage sags on inferior battery banks.

ROI & Diesel Displacement Analysis

The economic justification for the Felicity 17.5kWh system is centered on the total cost of ownership (TCO). In the current Nigerian energy landscape, the cost per kilowatt-hour from a diesel generator—accounting for fuel, transport, and 500-hour service intervals—exceeds the levelized cost of storage (LCOS) of this lithium unit by over 300%. By shifting the primary load to this battery and utilizing either Solar PV or the midnight grid (NEPA/ECG) for recharging, an enterprise can achieve full ROI within 24 to 30 months. Furthermore, the elimination of 'generator noise pollution' and carbon emissions provides intangible value for high-end residential neighborhoods. At Maypatronic, our field data shows that replacing a standard 16-unit Gel battery bank with one Felicity 17.5kWh lithium unit reduces the physical footprint by 70% while providing more usable energy and a cycle life that is five times longer. This is not just an energy purchase; it is a long-term infrastructure hedge against rising fuel prices and grid unreliability.
