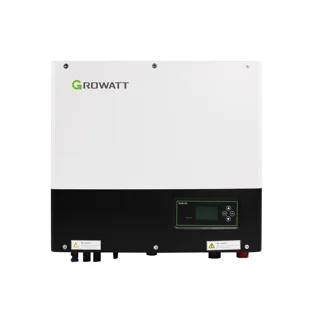

Growatt 10kva Hybrid Solar Inverter |SPH 10000TL3-BHUP

Executive Summary

The Growatt SPH 10000TL3-BHUP represents a significant shift in three-phase power management for the West African market. As an engineer-led supplier, we recognize that the primary failure point in local installations is often the mismatch between inverter switching speed and the volatile nature of the grid. This unit is a true hybrid, capable of managing simultaneous inputs from a solar array (up to 15,000Wp), high-voltage lithium battery storage, and the utility grid. Unlike standard grid-tie units, the SPH 10000TL3-BHUP features an integrated Uninterruptible Power Supply (UPS) function with a transition time of less than 10 milliseconds. In practical terms, this ensures that sensitive medical equipment, data servers, or industrial PLC controllers in Lagos or Accra do not reboot during a sudden utility outage. Its IP65 rating makes it resilient against the fine dust of the harmattan season, provided proper ventilation clearances are maintained during mounting.

Technical Component Breakdown

At the heart of the SPH 10000TL3-BHUP is a dual MPPT (Maximum Power Point Tracking) architecture with a wide voltage range of 160V to 1000V. This allows for flexible string sizing, enabling installers to optimize for early-morning start-up voltages even during overcast weather in the Niger Delta or the rainy season in Kumasi. The unit utilizes a transformerless design, which significantly reduces parasitic weight and increases total efficiency to 98.2%. A critical technical advantage of this specific model is its compatibility with high-voltage (HV) battery systems, typically ranging from 100V to 550V. By utilizing HV batteries, the system experiences lower current draw for the same power output compared to 48V systems, resulting in less thermal stress on the internal busbars and reduced DC cable losses. The cooling system is naturally aspirated, meaning no external fans to clog with dust, though our installation crews recommend vertical mounting with at least 300mm of top clearance for optimal heat dissipation via the rear-mounted heat sinks.

Load Application Matrix

The 10kW continuous output capacity of the SPH 10000TL3-BHUP is distributed across three phases, making it ideal for large residential estates or medium-scale commercial enterprises. In a balanced load scenario, each phase can comfortably handle 3.3kW. For residential applications in Lekki or East Legon, this translates to the ability to run multiple inverter-type air conditioners (1.5HP to 2.0HP), pumping machines, and high-draw kitchen appliances simultaneously.

• Residential: Supports full household lighting, refrigeration, 4-5 inverter ACs, and electric gate motors.
• Commercial: Ideal for cold storage facilities where three-phase compressors require stable voltage to prevent motor winding burnout.
• Industrial: Acts as a reliable power conditioner for small CNC machinery or textile equipment where phase synchronization is critical.

It is vital to note that while the unit handles surge currents well, the total inductive load should not exceed the 10kVA rating for sustained periods to ensure the longevity of the IGBT modules.

ROI & Diesel Displacement Analysis

Given the current trajectory of diesel prices in Nigeria and Ghana, the SPH 10000TL3-BHUP offers a compelling financial recovery timeline. For a facility currently running a 20kVA diesel generator for 8 to 12 hours daily, transitioning to this hybrid system can reduce fuel consumption by up to 85%. In a typical Abuja corporate office, the avoided cost of diesel, oil filters, and technician labor results in a full Return on Investment (ROI) within 24 to 30 months. Furthermore, the inverter's ability to perform 'Peak Shaving' allows businesses to draw from the battery during high-tariff periods (where applicable) and recharge during off-peak hours or via solar. This intelligent energy management mitigates the impact of utility price hikes. By stabilizing the incoming voltage from the grid (PHCN/ECG), the inverter also prevents the costly replacement of burnt-out appliances, a hidden but significant saving for the West African consumer.
