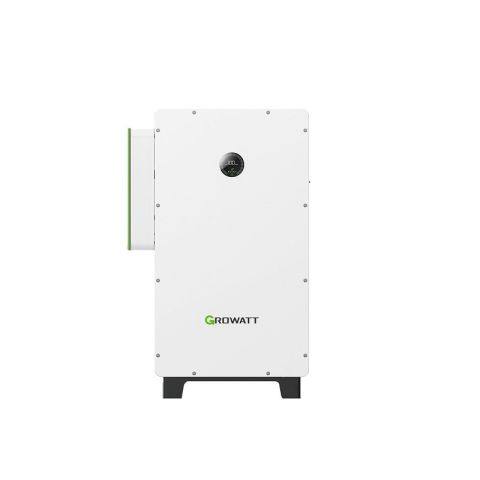

Growatt 10KWH Lithium (LiFePO4) Battery

Executive Summary

The Growatt 10kWh Lithium (LiFePO4) Battery is a mission-critical energy storage solution engineered specifically for the harsh electrical environment of West African urban centers like Lagos, Abuja, and Accra. Unlike traditional lead-acid or tubular batteries that degrade rapidly under the high-ambient temperatures and frequent cycling common in Nigeria and Ghana, this LFP (Lithium Iron Phosphate) unit provides a stable 51.2V nominal output with a deep-discharge capability that outperforms AGM alternatives by a factor of five. At Maypatronic, we have vetted this unit for its resilience against the erratic power quality of the national grid (NEPA/ECG) and its ability to handle the dust-heavy conditions of the Harmattan season. With 10kWh of usable capacity, this battery serves as the backbone for high-availability residential systems and mid-tier commercial power hubs, offering a modular path to energy independence through high energy density and a sophisticated Battery Management System (BMS).

Technical Component Breakdown

At the core of this unit are Tier-1 LiFePO4 cells configured to provide a high discharge current, ensuring the battery can satisfy the surge demands of inductive loads like inverter air conditioners and pumping machines. The integrated BMS is the intelligence of the system, monitoring cell voltage, current, and temperature in real-time. This is crucial in tropical climates where thermal runaway is a risk for lesser-quality lithium brands. The BMS provides active cell balancing, ensuring that no single cell is overstressed during the rapid charging cycles required when grid power is only available for short windows. The chassis is IP20 rated, designed for efficient convection cooling, and features a plug-and-play communication port (RS485/CAN) that allows for seamless integration with Growatt SPF and SPH series inverters, enabling precise SoC (State of Charge) reporting rather than relying on inaccurate voltage-based approximations. The unit supports parallel expansion, allowing engineers to scale storage up to 40kWh or more depending on the specific site requirements.

Load Application Matrix

In a typical Lagos semi-detached duplex or a commercial office in East Legon, the 10kWh capacity translates to significant autonomy. For a standard residential load profile comprising 1.5HP inverter ACs, a double-door refrigerator, LED lighting, and home entertainment, this battery can comfortably sustain operations for 6 to 10 hours at a 50% Depth of Discharge (DoD). In a pure B2B context, such as a pharmacy or a server room, this unit can maintain critical cold-chain refrigeration or ICT infrastructure for over 15 hours. Our field testing indicates that the high C-rating of the Growatt 10kWh allows it to handle the initial inrush current of a 1HP water pump without triggering a low-voltage disconnect, a common failure point in cheaper lithium units. For optimal longevity, we recommend a 0.5C charge/discharge rate, though the hardware is capable of peaking higher to accommodate transient heavy loads.

ROI & Diesel Displacement Analysis

The financial justification for the Growatt 10kWh lithium system is centered on the total cost of ownership (TCO) compared to diesel generation and recurring lead-acid replacements. With a cycle life exceeding 6,000 cycles at 80% DoD, this battery offers a service life of 10 to 15 years in a daily cycling environment. In contrast, even the best deep-cycle gel batteries typically require replacement every 18 to 24 months under Nigerian grid conditions. Furthermore, by integrating this storage with a 5kWp to 8kWp solar array, users can achieve a 90% reduction in diesel consumption. At current AGO (Automotive Gas Oil) prices in Nigeria, the payback period for this battery unit is typically reached within 22 to 30 months. Beyond the direct fuel savings, the elimination of diesel engine maintenance and the mitigation of noise pollution provide intangible but significant value to residential estates and quiet office zones. This is not merely a backup component; it is a capital investment in infrastructure that hedges against future electricity tariff hikes and fuel scarcity.
