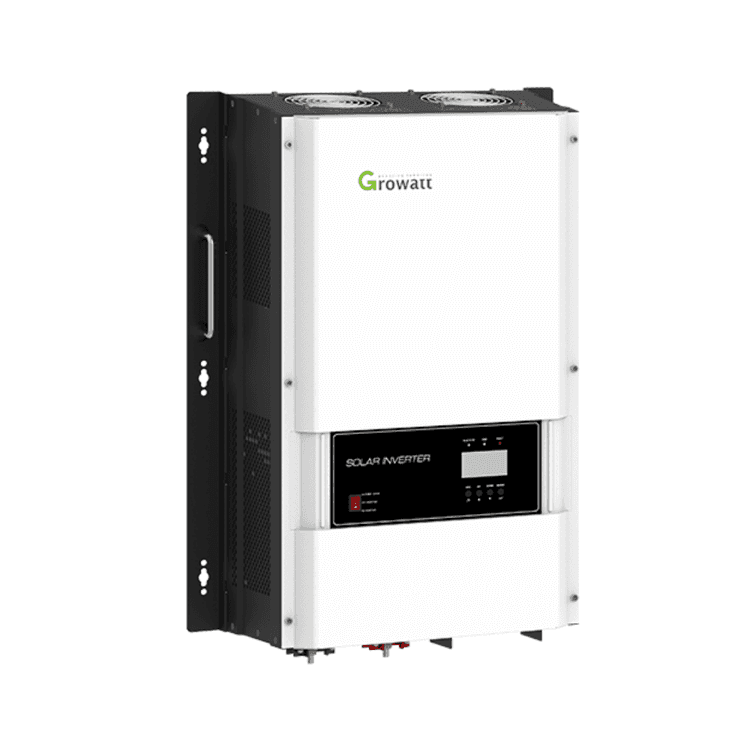

Growatt 12KVA/48V Hybrid Inverter-Remote Monitoring In-built Charge Controller

Executive Summary

The Growatt 12KVA/48V Hybrid Inverter represents a heavy-duty power conversion solution engineered specifically for the harsh grid dynamics of the Nigerian and Ghanaian markets. As a low-frequency transformer-based unit, it is uniquely suited to handle the high-surge inductive loads common in West African industrial and residential settings. Unlike high-frequency alternatives that often fail under the stress of harmonic distortion or voltage spikes from the national grid (NEPA/PHCN or ECG), this 12KVA powerhouse utilizes a robust copper transformer design to provide superior thermal stability and fault tolerance. With its integrated MPPT charge controller and remote monitoring capabilities, this inverter serves as the central nervous system for a sophisticated renewable energy plant, capable of sustaining critical operations during extended grid outages or providing total off-grid autonomy in remote areas like the outskirts of Abuja or the industrial zones of Tema.

Technical Component Breakdown

At the core of this system is a high-efficiency Pure Sine Wave power stage that ensures the total harmonic distortion (THD) remains below 3 percent, protecting sensitive electronics like medical equipment and server racks. The integrated Maximum Power Point Tracking (MPPT) charge controller is a critical feature, optimized to extract peak performance from solar arrays even during the heavy cloud cover of the rainy season or the dusty conditions of the Harmattan period. Key specifications include:

• Input Voltage Range: Wide window tolerance to manage the fluctuating 160V-260V typical of local grid supplies.
• Battery Management: The 48V DC architecture reduces current draw compared to lower voltage systems, minimizing I2R heat losses and allowing for smaller cable cross-sections while maintaining high output.
• Transformer Design: The low-frequency toroidal transformer provides a 300 percent surge capacity for 20 milliseconds, essential for kicking over heavy compressor motors.
• Remote Monitoring: Built-in Wi-Fi/GPRS modules allow for real-time telemetry via the Growatt ShineServer, enabling our technical team or the site manager to monitor battery State of Charge (SoC) and PV yield from any location via smartphone.

Load Application Matrix

This 12KVA unit is not a standard residential inverter; it is a high-capacity machine designed for multi-unit dwellings and SMEs. In a typical Lagos commercial setting, this inverter can concurrently support three to four 1.5HP inverter-type air conditioners, multiple workstation computers, industrial-grade printers, and localized server infrastructure. For residential applications, it easily manages heavy domestic loads including pumping machines, deep freezers, and microwave ovens. Installation Recommendation: To maximize the 48V busbar efficiency, we recommend pairing this unit with a minimum of 400Ah lead-acid gel banks or, preferably, 200Ah-400Ah Lithium Iron Phosphate (LiFePO4) batteries. The charging algorithm is fully programmable, allowing for precise bulk, absorption, and float voltage settings tailored to the specific battery chemistry deployed on-site.

ROI & Diesel Displacement Analysis

The economic rationale for the Growatt 12KVA hybrid system is centered on the total displacement of diesel generator run-time. With the current landing cost of diesel in West Africa, the payback period for this hardware is approximately 18 to 24 months when utilized as a primary power source. By prioritizing PV and battery discharge during peak tariff hours or during prolonged outages, the system eliminates the variable costs of fuel, oil filters, and mechanical wear associated with internal combustion engines. Furthermore, the hybrid functionality allows for 'Peak Shaving,' where the inverter supplements the grid during high-demand periods to prevent tripping local breakers. For businesses in Accra or Lagos, this translates to uninterrupted productivity and a significant reduction in O&M (Operations and Maintenance) expenditure, providing a stable, predictable energy cost for the next decade of service life.
