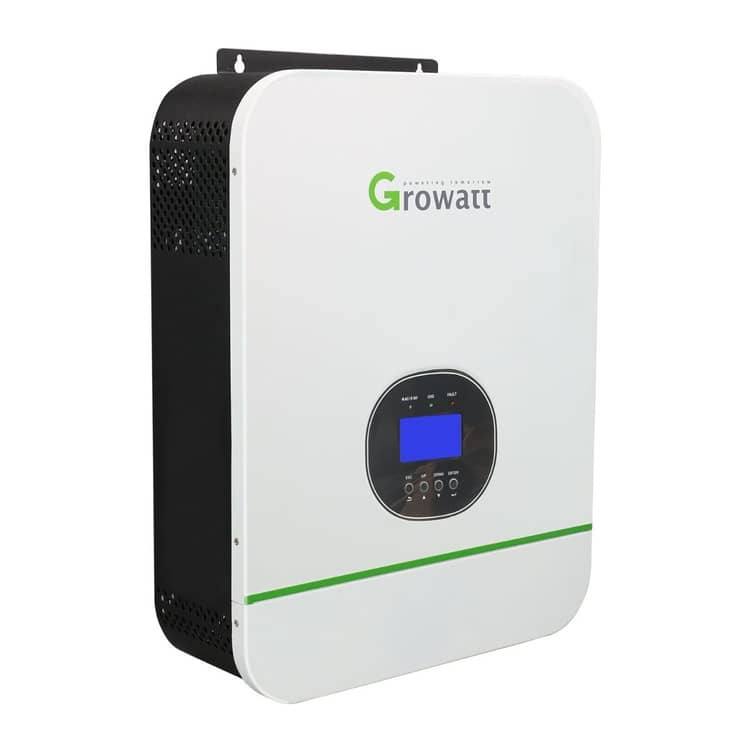

Growatt 3KVA/48V Hybrid Inverter-Remote Monitoring

Executive Summary

The Growatt SPF 3000TL HVM-48 represents a high-efficiency power conversion solution specifically engineered to bridge the reliability gap in the Nigerian and Ghanaian energy sectors. As a 3KVA hybrid inverter, this unit integrates a pure sine wave DC-to-AC converter, a high-voltage MPPT charge controller, and a sophisticated UPS function module. Unlike basic off-grid units, the 48V architecture ensures lower heat dissipation and higher efficiency during peak draw, making it particularly resilient against the ambient temperatures found in Lagos or Accra. By utilizing a 48V battery bank, the system reduces DC current demand by 75 percent compared to 12V alternatives, significantly extending the lifespan of internal MOSFETs and reducing copper cabling losses. This is a contractor-grade solution designed for continuous duty cycles where grid stability from NEPA or ECG cannot be guaranteed.

Technical Component Breakdown

At the core of the Growatt 3KVA unit is a transformerless topology which facilitates a peak efficiency of 93 percent. The integrated MPPT (Maximum Power Point Tracking) controller supports a maximum PV array open-circuit voltage of 145VDC, allowing for flexible string configurations. In our field tests across Lagos and Abuja, we have found that the 48V configuration provides superior thermal management during the heavy load spikes typical of modern electronics. The remote monitoring capabilities are facilitated via a plug-and-play ShineWiFi-F or ShineGPRS-F module, enabling installers and end-users to track real-time generation, battery SOC (State of Charge), and load consumption through the ShinePhone application. The unit further features a cold-start function and an intelligent variable speed fan that adjusts according to the internal heat sink temperature, a critical feature for surviving the fine dust particles of the Harmattan season that can otherwise clog static cooling systems.

Load Application Matrix

This 3KVA/48V system is optimized for high-demand residential applications and small-to-medium enterprise (SME) operational continuity. It is engineered to comfortably support a standardized load profile including 1.5HP inverter-technology air conditioners (when appropriately ramped), multiple energy-efficient LED lighting circuits, high-definition entertainment systems, and standard refrigeration units. For the B2B segment, this unit is the preferred choice for ATM kiosks, server rooms, and pharmacy cold-chain storage where power interruption is not an option. We recommend pairing this inverter with a minimum of 200Ah 48V Lithium (LiFePO4) storage or a bank of four 200Ah deep-cycle gel batteries to ensure sufficient autonomy during prolonged grid outages. The built-in bypass function allows the inverter to transfer to utility power in less than 10 milliseconds, ensuring that sensitive desktop computers and medical equipment do not reboot during a transition from grid to battery.

ROI & Diesel Displacement Analysis

Investing in the Growatt 3KVA/48V system provides a measurable financial return by aggressively displacing diesel generator reliance. In the current economic climate in Nigeria and Ghana, the Levelized Cost of Energy (LCOE) for solar-plus-storage is significantly lower than the per-kilowatt cost of diesel generation, particularly when factoring in maintenance, oil changes, and mechanical wear. By prioritizing solar self-consumption, users can expect a full return on investment (ROI) within 18 to 24 months, depending on local tariff structures and fuel prices. Furthermore, the 48V system's ability to handle high-surge currents reduces the need to over-size the inverter, lowering the initial capital expenditure. For commercial sites in Tema or Port Harcourt, the reduction in noise pollution and carbon emissions provides secondary benefits, while the remote monitoring feature reduces the need for physical site visits by technical crews, further lowering the total cost of ownership over a 10-year service life.
