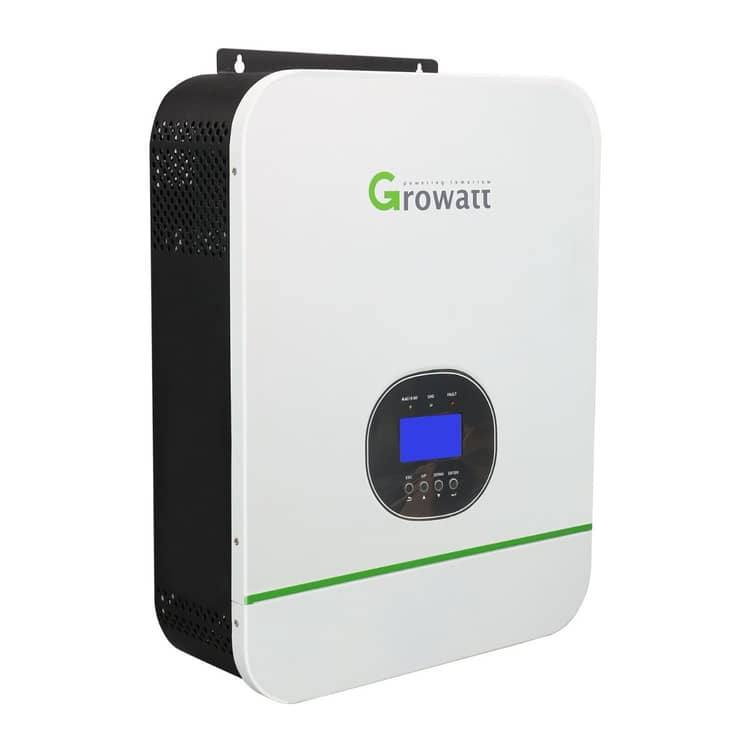

Growatt 5KVA/48V Hybrid Inverter-Remote Monitoring And MMPT Charge Controller

Executive Summary

The Growatt 5kVA/48V Hybrid Inverter represents a critical evolution in decentralized power infrastructure for the West African market. Designed to withstand the thermal stress of regions like Lagos and Accra, this unit integrates a high-efficiency Pure Sine Wave inverter with an advanced Maximum Power Point Tracking (MPPT) charge controller. Unlike basic off-grid units, this hybrid system manages multiple input sources—Utility (PHCN/ECG), Generator, and Solar—optimizing for the lowest cost of energy at any given moment. At Maypatronic, we have vetted this hardware for its durability against the frequent voltage transients common in Nigerian local grids. Its 48V DC architecture ensures reduced cabling losses and improved battery longevity compared to lower voltage configurations, making it the industrial standard for premium residential and SME installations.

Technical Component Breakdown

At the heart of this unit is a robust transformerless topology that achieves peak conversion efficiencies exceeding 93%. The integrated MPPT controller supports a high PV input voltage, allowing for longer series strings which significantly simplifies rooftop wiring and reduces the cost of DC combiners. The remote monitoring interface, accessible via WiFi or GPRS modules, provides real-time telemetry on battery State of Charge (SoC), PV production curves, and load consumption. Key technical parameters include:

• Power Rating: 5000VA / 5000W at 1.0 Power Factor, ensuring no derating for inductive loads.
• MPPT Range: Wide operating window (120VDC to 430VDC) allowing for efficient harvest even during the hazy Harmattan season.
• Surge Capacity: 2x rated power for 5 seconds to handle the inrush current of refrigerator compressors and AC units.
• Communication: RS485 and CAN ports for seamless BMS integration with Lithium Iron Phosphate (LiFePO4) battery banks.

The chassis is designed with forced-air cooling and replaceable dust filters, a necessity for longevity in high-particulate environments common in industrial zones like Ikeja or Tema.

Load Application Matrix

This 5kVA system is engineered for mid-to-high demand scenarios where reliability is non-negotiable. For a typical Nigerian residential setup, this unit comfortably manages a four-bedroom duplex. Recommended load profiles include:

• Residential: 1.5HP Inverter Air Conditioner (daytime priority), multiple LED lighting circuits, 43-65 inch televisions, CCTV surveillance systems, and high-capacity pressure pumps.
• Commercial/Office: 15-20 Workstations, server racks, networking gear (routers/switches), and laser printers.
• Critical Infrastructure: Cold chain storage for pharmacies or laboratory equipment requiring stable, ripple-free power.

It is important to note that while the inverter handles surge loads, we recommend a managed load distribution to prevent premature battery depletion during extended grid outages. The internal bypass allows the unit to pass through utility power while charging batteries, ensuring seamless transitions during frequent load shedding.

ROI & Diesel Displacement Analysis

From an engineering and financial standpoint, the primary value proposition of the Growatt 5kVA Hybrid is the immediate reduction in Levelized Cost of Energy (LCOE). In the current economic climate of deregulated diesel prices in Nigeria, the payback period for this inverter system when paired with a 5kWp solar array is approximately 18 to 24 months. By prioritizing solar self-consumption, users can displace 80% of daytime diesel generator runtime. Detailed ROI benefits include:

• Elimination of Idle Fuel Consumption: Generators run inefficiently at low loads; this inverter ensures the generator only fires during deep-cycle battery recovery or extreme peak demands.
• Maintenance Savings: Extending the service intervals of backup generators by up to 300% due to reduced runtime.
• Grid Stabilization: The unit acts as a high-speed voltage regulator, protecting expensive downstream electronics from the brownouts and surges typical of the national grid.

Investing in the Growatt 5kVA/48V system via Maypatronic ensures not just hardware acquisition, but a technical partnership including localized support and deep system integration expertise for the long term.
