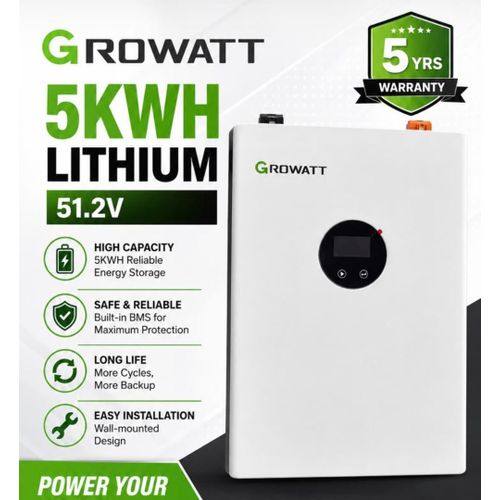

Growatt 5KWH 51.2v 100AH Lithium (LiFePO4) Battery

Executive Summary

The Growatt 5kWh 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) battery represents a critical advancement in decentralized energy storage for the West African market. Unlike legacy lead-acid or gel alternatives that suffer from premature sulphation due to the inconsistent grid profiles of NEPA/EKEDC or ECG, this unit is engineered for deep-cycle resilience. It offers a 90% Depth of Discharge (DoD) while maintaining a cycle life exceeding 6,000 cycles at standard temperature. As a chartered engineering firm, Maypatronic recommends this specific module for both residential backup and critical commercial infrastructure where downtime equates to direct revenue loss. The unit utilizes a sophisticated Battery Management System (BMS) that monitors cell voltage, current, and thermal gradients, ensuring the pack remains within its Safe Operating Area (SOA) even during the intense heat of the Harmattan season or the high humidity of coastal Lagos and Accra.

Technical Component Breakdown

At the core of this 51.2V nominal system are premium LiFePO4 cells, known for their thermal stability and chemical robustness. The 51.2V architecture is superior to older 48V standards as it aligns better with the charging algorithms of modern high-frequency inverters, reducing conversion losses. The integrated BMS provides proactive cell balancing, which is vital for maintaining the longevity of the 100Ah capacity. Key technical specifications include a maximum charging current of 50A and a maximum discharge current of 100A, allowing for a peak power output that can handle inductive surges from borehole pumps or refrigeration compressors. The enclosure is IP20 rated, designed for indoor installation with a compact form factor that allows for wall-mounting or stacked configurations. Communication protocols are robust, featuring RS485 and CAN ports that facilitate plug-and-play synchronization with Growatt SPF and SPH series inverters. This closed-loop communication ensures the inverter receives real-time SOC (State of Charge) data, preventing the over-discharge common in generic lithium setups.

Load Application Matrix

Understanding the load profile is essential for system sizing. A single 5kWh module is optimized for a typical 3-bedroom apartment or a medium-sized office unit. In a residential context, this battery can comfortably support a sustained load consisting of 1.5hp inverter air conditioning (managed), LED lighting, LED televisions, and standing fans. For commercial applications in hubs like Victoria Island or East Legon, a single unit can power a server rack, 10 workstations, and essential security lighting for over 8 hours during a total grid collapse. For larger loads, such as centralized water pumping systems or industrial refrigeration, we recommend a parallel configuration. The Growatt architecture allows for the parallel connection of up to 16 units, scaling total storage to 80kWh. This scalability makes it a future-proof investment for growing businesses that start with a single module and intend to expand their solar array as budget permits.

ROI & Diesel Displacement Analysis

The primary economic driver for adopting the Growatt 5kWh lithium system in Nigeria and Ghana is the drastic reduction in Levelized Cost of Storage (LCOS) compared to diesel generation. With the current price of AGO (Diesel) fluctuating significantly, the cost per kWh of a diesel generator typically ranges between three to five times the cost of stored solar energy over a 5-year period. By deploying this 100Ah lithium module, an average household can displace 6 to 10 hours of daily generator runtime. Given the 6,000-cycle rating, this battery is designed to provide reliable service for over 10 years if cycled once daily. In contrast, lead-acid batteries often fail within 18 to 24 months under the same conditions due to the high ambient temperatures of our region. The capital expenditure (CAPEX) of NGN 1,120,000 is typically recouped within 24-30 months through fuel savings and eliminated maintenance costs for internal combustion engines. Furthermore, the silent operation and zero-emission profile provide an intangible but significant improvement to the quality of life and environmental compliance for B2B clients.
