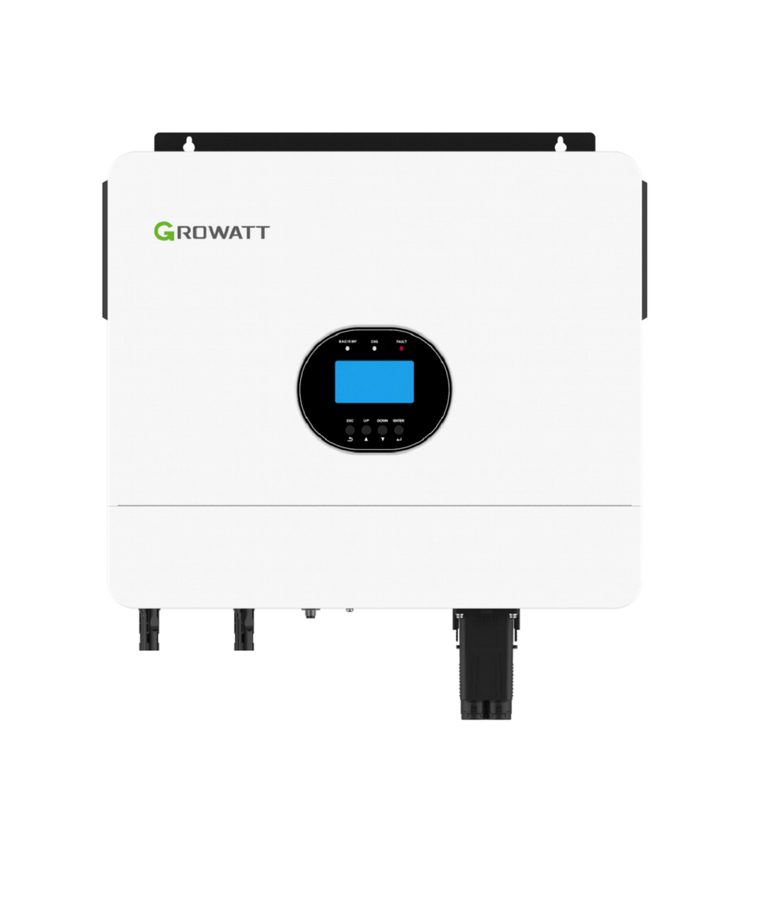

Growatt 6KVA Inverter - SPF 6000 ES Plus

Executive Summary

The Growatt SPF 6000 ES Plus represents a significant evolution in off-grid power conversion technology, specifically engineered for the high-ambient temperatures and fluctuating grid voltages characteristic of West African metropolitan hubs like Lagos and Accra. As an upgrade to the standard 5kW series, this 6kVA unit provides a 20% increase in continuous throughput, allowing for the concurrent operation of inductive loads that typically stress residential systems. Integrating a high-voltage MPPT controller and a pure sine wave inverter, the ES Plus architecture eliminates the need for external charge controllers, reducing points of failure in the DC bus. For the Nigerian professional or the Ghanaian industrialist, this unit serves as a robust primary power gateway capable of managing both grid-tied bypass and completely off-grid autonomy with seamless sub-10ms transfer times, ensuring that sensitive electronics do not reboot during NEPA or ECG outages.

Technical Component Breakdown

At the core of the SPF 6000 ES Plus is a dual-MPPT input design supporting a maximum PV array of 8000W, significantly higher than its predecessors. This allows for over-provisioning of solar strings to ensure maximum harvest during the hazy Harmattan season when irradiance levels drop. The MPPT operating range of 120VDC to 450VDC permits longer series strings, which reduces current flow and minimizes heat loss through DC cabling. Internally, the unit utilizes high-grade silicon carbide MOSFETs for improved thermal efficiency, essential for performance in Abuja or Kumasi where ambient temperatures often exceed 35 degrees Celsius. Furthermore, the unit features a dust-proof design with replaceable filters, protecting the internal PCB from the fine dust particles common in West African environments. The integrated 48V battery interface is compatible with both lead-acid and lithium iron phosphate (LiFePO4) chemistries, featuring dedicated BMS communication ports for seamless integration with high-end storage units like the Growatt Hope or Pylontech series.

Load Application Matrix

In a standard residential or SME deployment, the 6kVA (6000W) rating is sufficient to manage a sophisticated load profile. For typical Nigerian households, this unit comfortably powers a 1.5HP inverter air conditioner, two refrigerators, a microwave, and a complete home office setup including desktop workstations and networking gear. In a B2B context, such as a pharmacy or professional laboratory, the SPF 6000 ES Plus provides the necessary surge capacity to start refrigeration compressors without triggering a low-voltage trip. The unit supports parallel expansion up to 6 units, allowing for a total system capacity of 36kVA in a three-phase configuration, making it a scalable solution for small hotels or manufacturing floors in the Tema Industrial Area. It is critical to note that while the unit handles surge loads, we recommend a sustained load not exceeding 80% of rated capacity to maximize the lifespan of the electrolytic capacitors.

ROI & Diesel Displacement Analysis

Given the current trajectory of diesel and PMS prices in the local market, the transition to a solar-hybrid system anchored by the Growatt 6000 ES Plus offers a definitive path to cost recovery. By prioritizing solar self-consumption and utilizing the grid only for supplemental charging during periods of low irradiance, users can displace between 70% and 90% of their previous diesel consumption. In a typical Lagos duplex running a 15kVA generator for 8 hours daily, the capital expenditure for this inverter and a corresponding 10kWh lithium bank is often recouped within 18 to 24 months through fuel savings and reduced maintenance intervals for internal combustion engines. Furthermore, the ability to program charging windows allows users to take advantage of off-peak grid availability, effectively shielding the facility from the systemic unreliability of the national grid. This is not merely an appliance; it is a strategic financial asset for any energy-conscious enterprise in West Africa.
