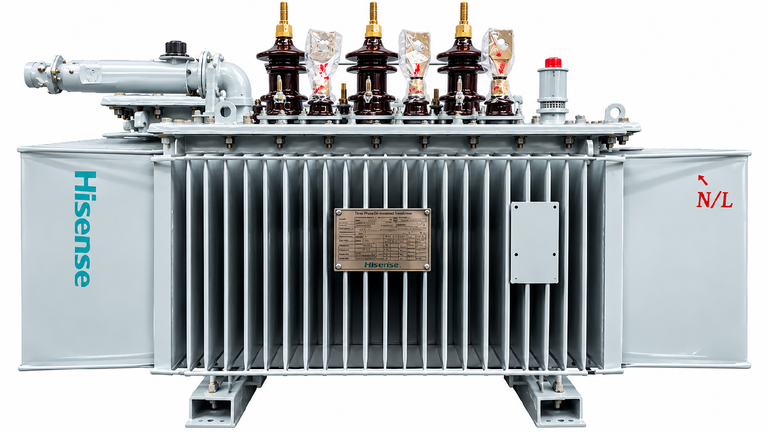

Hisense 315kVA 3phase oil-immersed step-down/up transformer
The Hisense 3-Phase Oil-Immersed 315 kVA (11/0.4 kV) step-down/up transformer is a medium-voltage distribution and inverter-compatible unit.
Retail
₦8,250,000
Bulk / B2B
Custom pricing
Key Specifications & Parameters
- Rated Power: 315 kVA
- Voltage Ratio: 11 kV (HV) / 0.4 kV (LV) (Step-Down / Step-Up)
- Vector Group: Dyn11
- Cooling Type: ONAN (Oil Natural Air Natural)
- Efficiency: ~98.1% at 100% load; ~98.7% at 50% load
- No-Load / Load Losses: No-load loss of 680 W; load loss of 14,900 W at 75°C
- Insulation Class & Protection: Class A insulation, C5 corrosion protection
- Weight & Dimensions: Total weight of approximately 1,150 kg; dimensions roughly 1580 × 1120 × 1230 mm
- Noise Level: ~58 dB(A)
Includes
- • Local manufacturer warranty
- • Delivery across NG/GH (charges confirmed at checkout)
- • Installation available on request
- • Post-sale technical support on WhatsApp
